Friday, August 31, 2012

Implement Facebook Login with OpenID Selector in MVC3

In My last post, I explained how we can implement Facebook login with OpenId selector tool. In this post I will explain you how we can use that tool in an ASP.NET MVC3 application.



1- Open Visual Studio 2010 go to File > New > Project > Web > ASP.NET MVC 3 Application:

then Choose Internet Application be sure to have Razor as your View engine and Click OK:
2- Download DotNetOpenAuth dll and Updated OpenID Selector files that we will use.
      A- Add the DotNetOpenAuth.dll to references in your site.
      B- Copy all contents of openid-selector\css folder to the 'Content' folder .
      C- Copy images, images.large, images.small folders to the site 'Content' folder.
      D- Copy openid-jquery.js, openid-en.js files from  openid-selector\js folder to 'Scripts' folder

Your Solution Explorer  will look like this (See Highlighted Portion)  :



 3- Go to Views > Shared > _Layout.cshtml and replace the <head> with this new head with new styles and scripts:
<head>
    <meta charset="utf-8" />
    <title>@ViewBag.Title</title>
    <link href="@Url.Content("~/Content/Site.css")" rel="stylesheet" type="text/css" />
    <script src="@Url.Content("~/Scripts/jquery-1.5.1.min.js")" type="text/javascript"></script>
    <script src="@Url.Content("~/Scripts/modernizr-1.7.min.js")" type="text/javascript"></script>
    <link href="@Url.Content("~/Content/openid-shadow.css")" rel="stylesheet" type="text/css" />
    <link href="@Url.Content("~/Content/openid.css")" rel="stylesheet" type="text/css" />
    <script src="@Url.Content("~/Scripts/openid-jquery.js")" type="text/javascript"></script>
    <script src="@Url.Content("~/Scripts/openid-en.js")" type="text/javascript"></script>
<script src="@Url.Content("~/Scripts/jquery.validate.min.js")" type="text/javascript"></script>
<script src="@Url.Content("~/Scripts/jquery.validate.unobtrusive.min.js")" type="text/javascript"></script>
 <script type="text/javascript" src="https://connect.facebook.net/en_US/all.js"> </script>

    <script type="text/javascript">
        $(document).ready(function () {
            openid.init('openid_identifier');
        });
    </script>
</head>

4- Go to Models > AccountModels.cs  , navigate to public class LogOnModel
   and Add OpenID attribute that we will use it to hold the returned OpenID from OpenID-Selector
  your class will look like this:
    public class LogOnModel
    {
        [Display(Name = "OpenID")]
        public string OpenID { get; set; }

        [Required]
        [Display(Name = "User name")]
        public string UserName { get; set; }

        [Required]
        [DataType(DataType.Password)]
        [Display(Name = "Password")]
        public string Password { get; set; }

        [Display(Name = "Remember me?")]
        public bool RememberMe { get; set; }
    }

5- Go to Models > AccountModels.cs and Add following class to it:
    public class UserDetailsModel
    {
        public string OpenID { get; set; }
        public string ProviderUrl { get; set; }
        public string FriendlyIdentifier { get; set; }
        public string FirstName { get; set; }
        public string LastName { get; set; }
        public string Dob { get; set; }
        public string Gender { get; set; }
        public string Email { get; set; }
    }

6- go to Views > Account > LogOn.cshtml replace all the markup with this one, This will
   integrate updated OpenID-Selector to LogOn View:


@model FBOpenIDMVC3.Models.LogOnModel

@{
    ViewBag.Title = "Log On";
}
<h2>
    Log On</h2>
<p>
    Please enter your username and password. @Html.ActionLink("Register", "Register")
    if you don't have an account.
</p>
<script type="text/javascript">
    $(document).ready(function () {
        // Init the SDK upon load
        window.fbAsyncInit = function () {
            FB.init({
                appId: '188220747944294', // App ID
                channelUrl: '//' + window.location.hostname + '/channel', // Path to your Channel File
                scope: 'id,name,first_name,last_name,gender,email',
                status: true, // check login status
                cookie: true, // enable cookies to allow the server to access the session
                xfbml: true  // parse XFBML
            });
        };
    });
    /*This Method will be invoked on lick on Facebook button*/
    function FBLogin() {
        FB.login(FBCallBack);
    }
    function FBCallBack(response) {
        if (response.authResponse) {
            // user has auth'd your app and is logged into Facebook
            FB.api('/me?fields=id,name,first_name,last_name,gender,email,birthday', function (userDetail) {
                if (userDetail.name) {
                    var url = '@Url.Action("ShowUserDetails", "Account", new { OpenID = "_id_", FriendlyIdentifier = "_id_", FirstName = "_first_", LastName = "_last_", Dob = "_birthday_", Gender = "_gender_", Email = "_email_" })';
                    url = url.replace('_id_', userDetail.id);
                    url = url.replace('_id_', userDetail.id);
                    url = url.replace('_first_', userDetail.first_name);
                    url = url.replace('_last_', userDetail.last_name);
                    url = url.replace('_birthday_', userDetail.birthday);
                    url = url.replace('_gender_', userDetail.gender);
                    url = url.replace('_email_', userDetail.email);
                    window.location.href = url;
                }
            });
        }
    }
    </script>
<form action="Authenticate?ReturnUrl=@HttpUtility.UrlEncode(Request.QueryString["ReturnUrl"])" method="post" id="openid_form">
<input type="hidden" name="action" value="verify" />
<div>
    <fieldset>
        <legend>Login using OpenID</legend>
        <div class="openid_choice">
            <p>
                Please click your account provider:</p>
            <div id="openid_btns">
            </div>
        </div>
        <div id="openid_input_area">
            @Html.TextBox("openid_identifier")
            <input type="submit" value="Log On" />
        </div>
        <noscript>
            <p>
                OpenID is service that allows you to log-on to many different websites using a single
                indentity. Find out <a href="http://openid.net/what/">more about OpenID</a> and
                <a href="http://openid.net/get/">how to get an OpenID enabled account</a>.</p>
        </noscript>
        <div>
            @if (Model != null)
            {
                if (String.IsNullOrEmpty(Model.UserName))
                {
                <div class="editor-label">
                    @Html.LabelFor(model => model.OpenID)
                </div>
                <div class="editor-field">
                    @Html.DisplayFor(model => model.OpenID)
                </div>
                <p class="button">
                    @Html.ActionLink("New User ,Register", "Register", new { OpenID = Model.OpenID })
                </p>
                }
                else
                {
                    //user exist
                <p class="buttonGreen">
                    <a href="@Url.Action("Index", "Home")">Welcome , @Model.UserName, Continue..." </a>
                </p>

                }
            }
        </div>
    </fieldset>
</div>
</form>

@Html.ValidationSummary(true, "Login was unsuccessful. Please correct the errors and try again.")
@using (Html.BeginForm())
{
    <div>
        <fieldset>
            <legend>Or Login Normally</legend>
            <div class="editor-label">
                @Html.LabelFor(m => m.UserName)
            </div>
            <div class="editor-field">
                @Html.TextBoxFor(m => m.UserName)
                @Html.ValidationMessageFor(m => m.UserName)
            </div>
            <div class="editor-label">
                @Html.LabelFor(m => m.Password)
            </div>
            <div class="editor-field">
                @Html.PasswordFor(m => m.Password)
                @Html.ValidationMessageFor(m => m.Password)
            </div>
            <div class="editor-label">
                @Html.CheckBoxFor(m => m.RememberMe)
                @Html.LabelFor(m => m.RememberMe)
            </div>
            <p >
                <input type="submit" value="Log On" />
            </p>
        </fieldset>
    </div>
}

7- Update the value of img_path in openid-jquery.js to '../Content/images/'

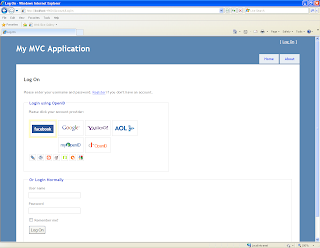

8- Now let us run the project , then click the [Log On] link , you will get like this page:
9- Now to implement Open ID using DotnetOpenAuth, Go to Controllers >
AccountController.cs and Add these using:

using DotNetOpenAuth.Messaging;
using DotNetOpenAuth.OpenId;
using DotNetOpenAuth.OpenId.RelyingParty;
using DotNetOpenAuth.OpenId.Extensions.AttributeExchange;
Then Add the following code to AccountController.cs:
        private static OpenIdRelyingParty openid = new OpenIdRelyingParty();

        [ValidateInput(false)]
        public ActionResult Authenticate(string returnUrl)
        {
            var response = openid.GetResponse();
            if (response == null)
            {
                //Let us submit the request to OpenID provider
                Identifier id;
                if (Identifier.TryParse(Request.Form["openid_identifier"], out id))
                {
                    try
                    {
                        var request = openid.CreateRequest(Request.Form["openid_identifier"]);
                        var fetch = new FetchRequest();
                        fetch.Attributes.Add(new AttributeRequest(WellKnownAttributes.Contact.Email, true));
                        fetch.Attributes.Add(new AttributeRequest(WellKnownAttributes.BirthDate.WholeBirthDate, true));
                        fetch.Attributes.Add(new AttributeRequest(WellKnownAttributes.Person.Gender, true));
                        fetch.Attributes.Add(new AttributeRequest(WellKnownAttributes.Name.First, true));
                        fetch.Attributes.Add(new AttributeRequest(WellKnownAttributes.Name.Last, true));
                        request.AddExtension(fetch);
                        return request.RedirectingResponse.AsActionResult();
                    }
                    catch (ProtocolException ex)
                    {
                        ViewBag.Message = ex.Message;
                        return View("LogOn");
                    }
                }

                ViewBag.Message = "Invalid identifier";
                return View("LogOn");
            }

            //Let us check the response
            switch (response.Status)
            {

                case AuthenticationStatus.Authenticated:
                    var fetch = response.GetExtension<FetchResponse>();
                    var sFirstName = "";
                    var sEmail = "";
                    var sLastName = "";
                    var sGender = "";
                    var sDob = "";
                    if (fetch != null)
                    {
                        foreach (var vAtrrib in fetch.Attributes)
                        {
                            switch (vAtrrib.TypeUri)
                            {
                                case WellKnownAttributes.Name.First:
                                    var firstNames = fetch.Attributes[WellKnownAttributes.Name.First].Values;
                                    sFirstName = firstNames.Count > 0 ? firstNames[0] : null;
                                    break;
                                case WellKnownAttributes.Contact.Email:
                                    var emailAddresses = fetch.Attributes[WellKnownAttributes.Contact.Email].Values;
                                    sEmail = emailAddresses.Count > 0 ? emailAddresses[0] : null;
                                    break;
                                case WellKnownAttributes.Name.Last:
                                    var lastNames = fetch.Attributes[WellKnownAttributes.Name.Last].Values;
                                    sLastName = lastNames.Count > 0 ? lastNames[0] : null;
                                    break;
                                case WellKnownAttributes.Person.Gender:
                                    var genders = fetch.Attributes[WellKnownAttributes.Person.Gender].Values;
                                    sGender = genders.Count > 0 ? genders[0] : null;
                                    break;
                                case WellKnownAttributes.BirthDate.WholeBirthDate:
                                    var doBs = fetch.Attributes[WellKnownAttributes.BirthDate.WholeBirthDate].Values;
                                    sDob = doBs.Count > 0 ? doBs[0] : null;
                                    break;
                            }
                        }
                    }
                    var sFriendlyLogin = response.FriendlyIdentifierForDisplay;
                    var lm = new UserDetailsModel
                    {
                        OpenID = response.ClaimedIdentifier,
                        FriendlyIdentifier = sFriendlyLogin,
                        FirstName = sFirstName,
                        LastName = sLastName,
                        Dob = sDob,
                        Gender = sGender,
                        Email = sEmail
                    };
                    FormsService.SignIn(sEmail, false);
                    return View("ShowUserDetails", lm);

                case AuthenticationStatus.Canceled:
                    ViewBag.Message = "Canceled at provider";
                    return View("LogOn");
                case AuthenticationStatus.Failed:
                    ViewBag.Message = response.Exception.Message;
                    return View("LogOn");
            }

            return new EmptyResult();
        }

        public ActionResult ShowUserDetails(UserDetailsModel objUserDetails)
        {
            return View(objUserDetails);
        }
        [HttpPost]
        public ActionResult ShowUserDetails(string OpenID, string FriendlyIdentifier, string FirstName, string LastName, string Dob, string Gender, string Email)
        {
            var objUserDetails = new UserDetailsModel()
            {
                OpenID = OpenID,
                FriendlyIdentifier = FriendlyIdentifier,
                FirstName = FirstName,
                LastName = LastName,
                Dob = Dob,
                Gender = Gender,
                Email = Email,
            };
            return View(objUserDetails);
        }
10 - Right Click on Views--> Accounts and Click Add-->View to add new view like this:
11- Add following code in this View:
    public class UserDetailsModel
    {
        public string OpenID { get; set; }
        public string ProviderUrl { get; set; }
        public string FriendlyIdentifier { get; set; }
        public string FirstName { get; set; }
        public string LastName { get; set; }
        public string Dob { get; set; }
        public string Gender { get; set; }
        public string Email { get; set; }
    }
12- Now run the project click [Log On] link and click a provider like Google it may ask you to sign in or ask you to allow access to your information you will get a page like this :
Congratulations  ,  now you had integrated OpenID login with facebook login to your project.

Download Code from here
